Location：Home>Products>Peristaltic pump head

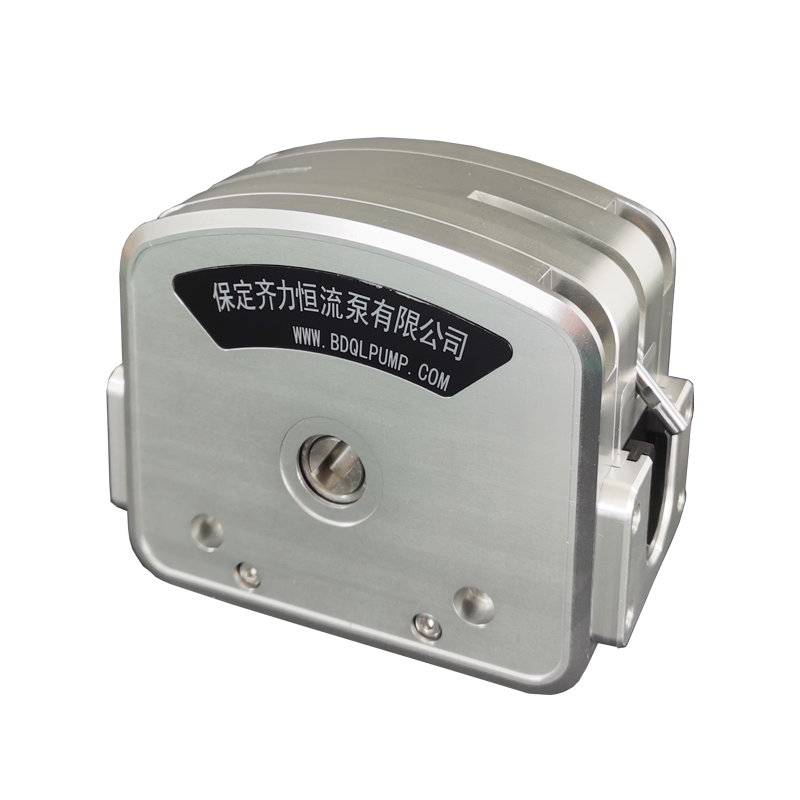

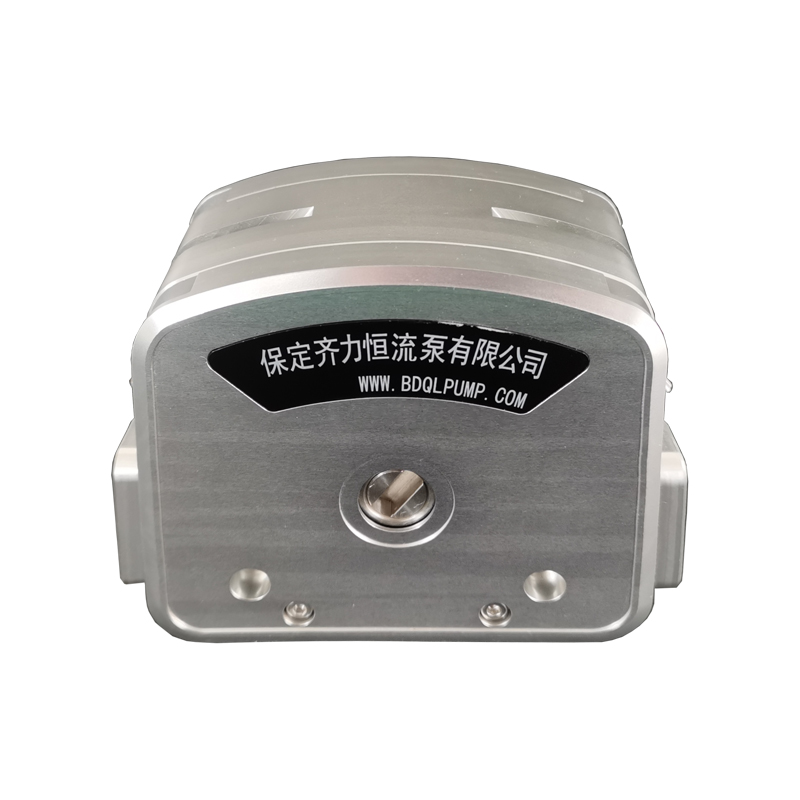

Peristaltic pump head KZ25B

It has excellent mechanical performance and can work continuously for a long time at high speed. It is made of aluminum alloy as a whole to quickly install the hose.

Flow range：0.3-6000ml/min

Maximum number of channels：2

Tel：0312-3332188 0312-6776688 Online communication

Introduction

Parameter

Guide

video

The flow rate of the quick-installed peristaltic pump head KZ25 is twice that of the YZ series when the same specification hose is used.

KZ25 is made of stainless steel, the shell is made of PC material, moderate flexibility, crystal clear, clear at a glance, the upper pressure block is made of PPS material, good self-lubricating, can reduce hose wear, rigidity, stable structure, good chemical stability, and resistance high temperature.

PPS+PS+SS=Perfect combination, showing excellent technical performance and usability.

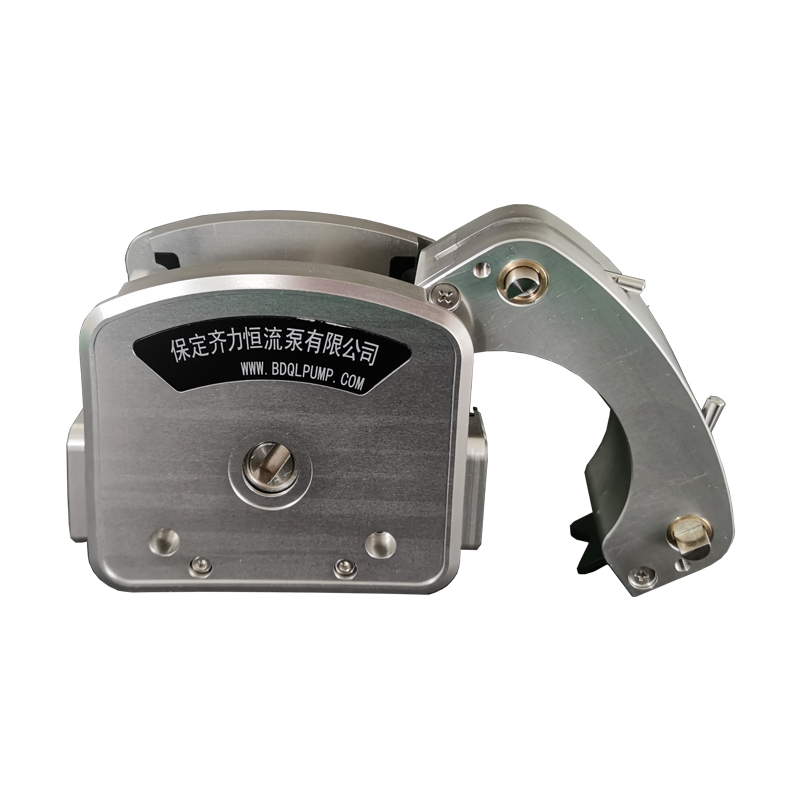

The upper pressure block can be separated from the pump head body, and it is convenient to install the hose. According to different specifications of hoses, the pipe clamp can be adjusted to ensure the accuracy of the flow.

model	Reference flow range (mL/min)	Speed range (rpm)	Applicable hose	Number of rollers	weight(kg)
KZ25	1800	≤600	15#	3	0.79
	3500		24#
	5000		35#
	6000		36#

Prev：DG series pump head

Next：YZ35pump head

相關(guān)產(chǎn)品

*If you encounter any operation or quality problems of Qili constant flow pump, please contact us in time.

*Baoding Qili constant flow pump Co., Ltd. guarantees 7 * 24 hours online.

*Qili constant flow pump brand products have a one-year warranty and lifelong maintenance.

*The product picture, model, data, function, performance, motor model, specification and other parameters of this website are for reference only. Qili constant flow pump can improve the above content. For more information, please refer to the product manual. Unless otherwise specified, the data contained in this website are the internal test results of Qili constant flow pump.
