Location：Home>Products>Peristaltic pump head

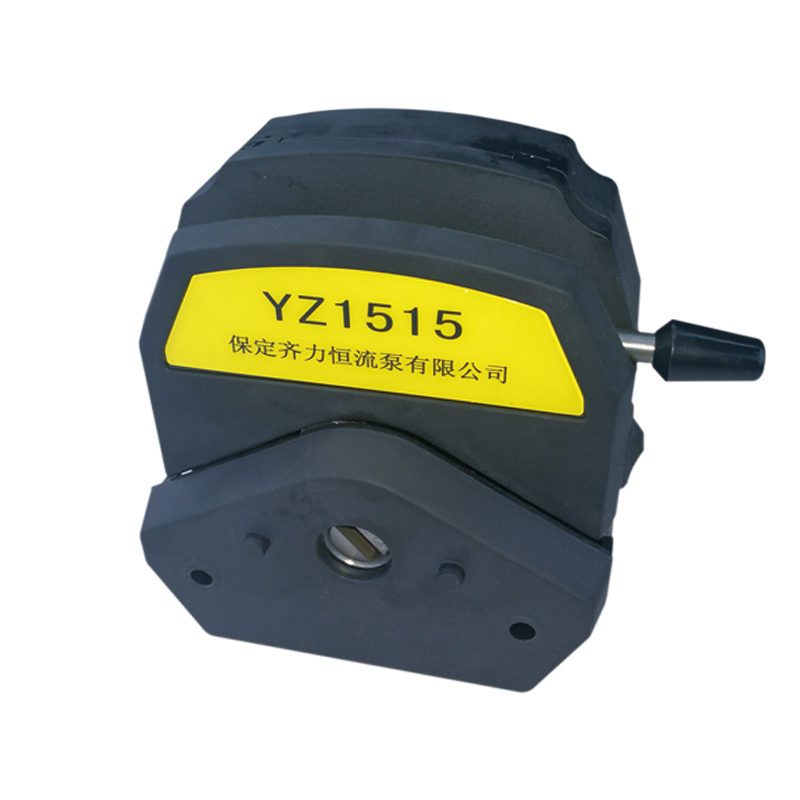

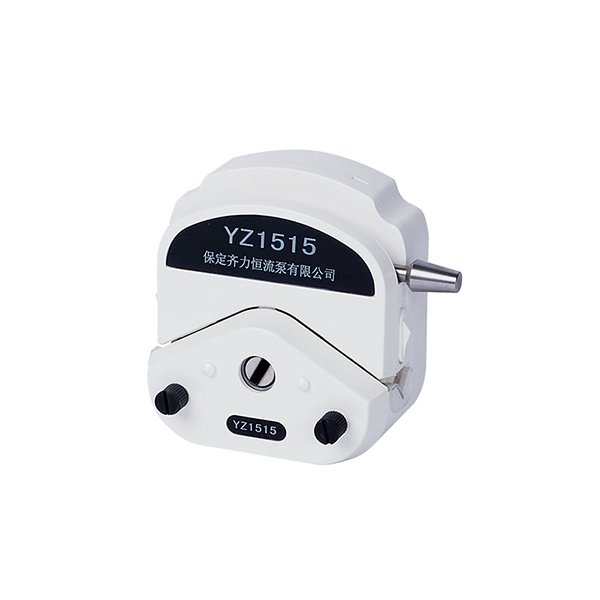

YZ1515 pump head

Quick replacement of hose, with automatic adaptation of pipe clamping device, is applicable to various specifications of hose. The rollers are made of high-quality stainless steel, with good durability, excellent rigidity and structural performance, and stable performance. The pump head made of PESU material shell is resistant to 150 ℃ high temperature and organic solvent. PPS material casing pump head, resistant to 150 ℃ high temperature and organic solvent.

Flow range：0.07-2280ml/min

Maximum number of channels：2

Tel：0312-3332188 0312-6776688 Online communication

Introduction

Parameter

Guide

video

Quickly replace the hose, with automatic adapting to the tube device, suitable for a variety of specifications of hoses, the rollers are made of high-quality stainless steel, with good durability, excellent rigidity and structural performance, stable performance, PESU material shell pump head, It is resistant to high temperature of 150℃ and not resistant to organic solvents. PPS material shell pump head, resistant to high temperature of 150 ℃, resistant to organic solvents.

model	Reference flow range (mL/min)	range of rotation (rpm)	Applicable hose	Number of rollers	weight(kg)
YZ1515	0.07 - 2280	1- 600	13# 14# 19# 16# 25# 17# 18#	3	0.4

YZ1515 Peristaltic Pump Head Dimensions

Prev：YZ35pump head

Next：DMD15pump head

相關(guān)產(chǎn)品

*If you encounter any operation or quality problems of Qili constant flow pump, please contact us in time.

*Baoding Qili constant flow pump Co., Ltd. guarantees 7 * 24 hours online.

*Qili constant flow pump brand products have a one-year warranty and lifelong maintenance.

*The product picture, model, data, function, performance, motor model, specification and other parameters of this website are for reference only. Qili constant flow pump can improve the above content. For more information, please refer to the product manual. Unless otherwise specified, the data contained in this website are the internal test results of Qili constant flow pump.
