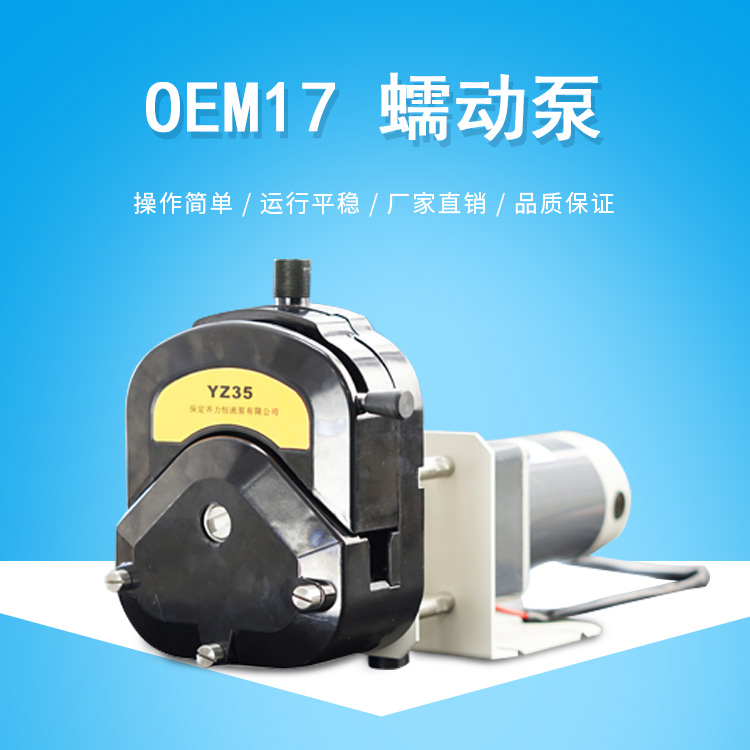

Main features of OEM17 peristaltic pump
▲ Driven by AC geared motor or DC geared motor, with large torque.
▲The motor can be selected with fixed speed according to user requirements.
▲The maximum flow rate of 12L/min can be provided, the speed is fixed, and it is optional.
▲B(niǎo)eautiful appearance, small size, easy installation, suitable for large flow liquid transportation in various environments with low precision.
| range of rotation | ＜600rpm | working environment | Ambient temperature 0～40℃, relative humidity <80% |
| motor | AC geared motor or DC geared motor | Power consumption | ≤120W |
| Applicable power supply | AC 220V (speed governor can be equipped), DC 12V/24V |
driver Dimensions (Length×Width×Height) |
248x130x123(mm) |
| Drive weight |
4.8kg |
| OEM-17 Peristaltic Pump Flow Parameters | ||||
| Drive model | Applicable pump head | Applicable hose | Maximum reference flow | Number of channels |
| （ml/min） | ||||
| OEM17 | KZ25 | 15#、24#、35#、36# | ≤6000 | 1 |
| YZ35 | 73#、82# | ≤12000 |
1 |
|
