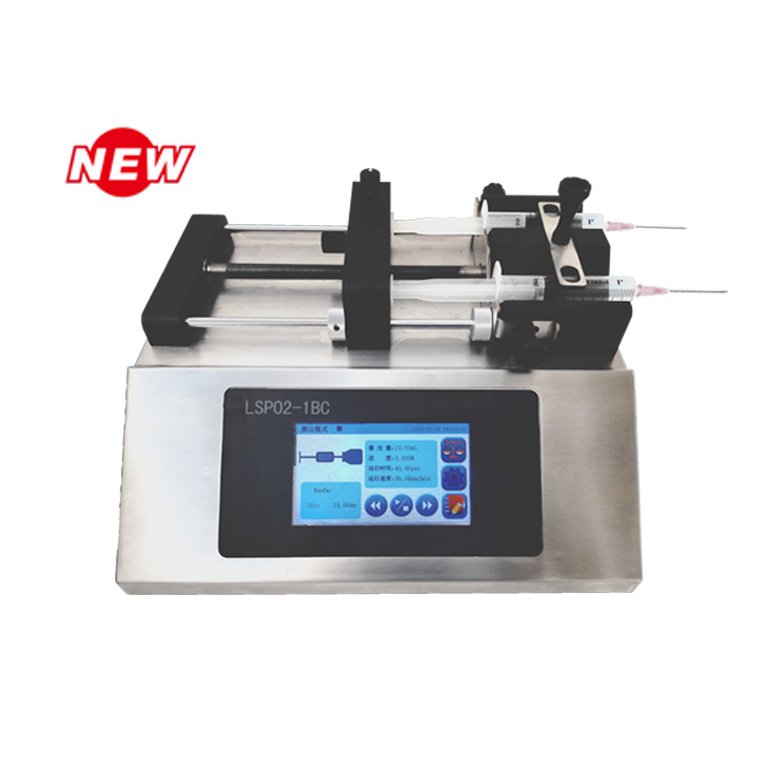

        Touch screen syringe pump LSP02-1BC

        Electrospinning applications and other laboratory microinjection experiments. .

        Flow range:0.001μL-86.699ml/min

        Maximum number of channels:2 channels

        Introduction

        Parameter

        Guide

        video

        typical application


        Electrospinning applications and other laboratory microinjection experiments. .


        main feature
        4.3-inch industrial-grade true color LCD display, intuitive interface, simple touch screen operation.

        The injection pump can be controlled through the external control interface.

        With correction function, high accuracy can be ensured through correction.

        RS485 communication uses Modbus protocol, which is easy to debug and use.

        Traffic jam protection function: During the working process, the propulsion mechanism of the syringe pump is blocked, and this equipment will stop the operation of the propulsion mechanism.

        304 stainless steel metal casing.
        LSP02-1BC technical indicators
        Number of channels 2 Flow correction Obtain a more accurate liquid volume through the calibration procedure
        Operating mode Perfusion, extraction, first infusion and then extraction, first extraction and then infusion, continuous Operation parameter setting Perfusion volume, extraction volume, perfusion flow, extraction flow, running time, pause time
        Maximum stroke 140mm Power-down memory After re-power on, keep the parameter settings before power off
        Stroke resolution 0.156um Status signal output 2-channel OC gate output, used to indicate start-stop and direction signals
        Linear speed range 5um/min-130mm/min Control signal input 2 start/stop control inputs, 1 falling edge trigger signal to control start/stop; 1 TTL level signal to control start/stop
        Linear speed adjustment resolution 5um/min Communication Interface RS485
        Stroke control accuracy Error ≤±0.5% (stroke) Dimensions 180×250×140(mm)
        Rated linear thrust 180N weight 4.5KG
        Syringe selection Built-in syringes of major manufacturers and models for selection Applicable power supply AC 100-240V
        Syringe customization The inner diameter of the syringe can be directly input working environment 0-40℃ Humidity<80%

        LSP02-1BC flow parameters
        Product number Applicable syringe specifications Inner diameter of syringe (mm) Reference flow range (μL/min-mL/min)
        LSP02-1BC 10μL 0.5 0.001-0.0255
        25μL 0.8 0.0025-0.0653
        50μL 1.1 0.0048-0.1235
        100μL 1.6 0.0101-0.2614
        250μL 2.3 0.0208-0.5401
        500μL 3.25 0.0415-1.0784
        1mL 4.72 0.0875-2.2747
        2mL 9 0.3181-8.2702
        5mL 13.1 0.6739-17.522
        10mL 16.6 1.0821-28.135
        20mL 19 1.4176-36.859
        30mL 23 2.0774-54.012
        60mL 29.14 3.3346-86.699
