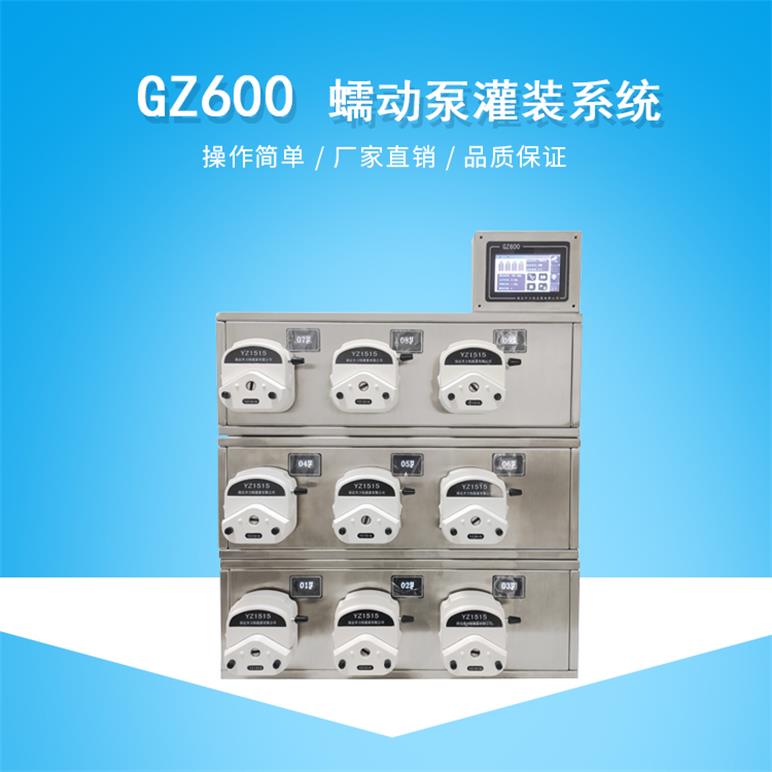

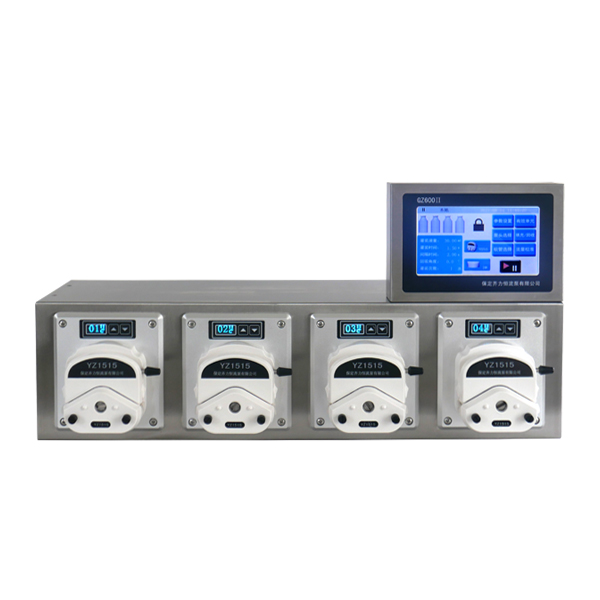

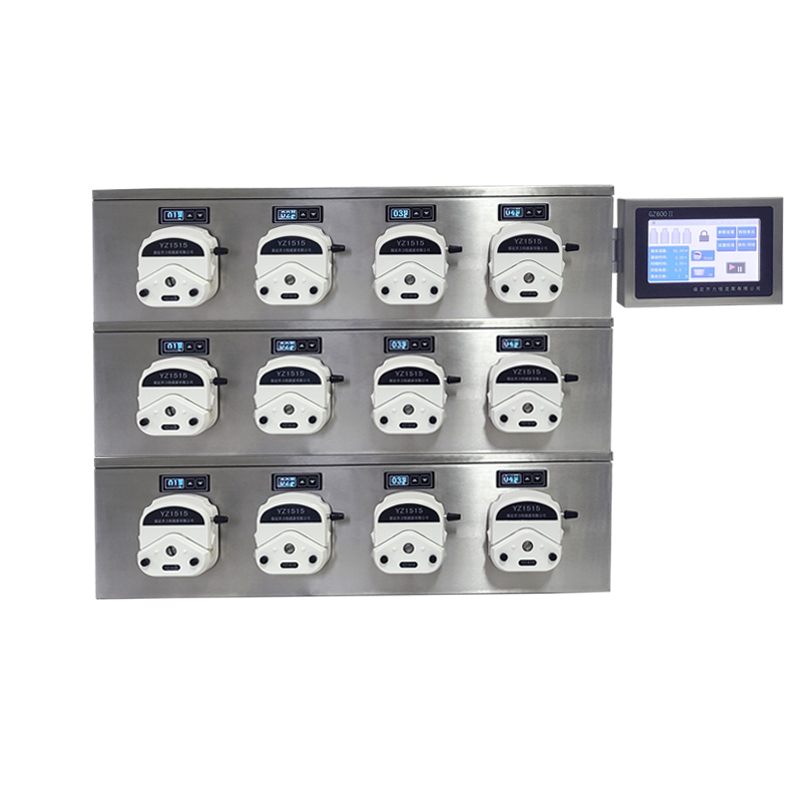

        Intelligent peristaltic pump filling system GZ600

        Using industrial-grade color touch LCD screen control, animation + data display filling status; can expand multiple groups of filling units, arbitrarily set the effectiveness of the filling unit, with liquid volume correction function

        Flow range:Filling liquid volume range: 0.07-2280ml/min

        Maximum number of channels:16 channels

        Introduction

        Parameter

        Guide

        video

        Features

        4.3-inch color touch screen control, friendly interface, animation display filling status, and the same screen displays filling parameters and system settings.

        Intelligent calibration function, automatic calibration of filling volume before production to ensure filling accuracy.

        Up to 16 filling channels can be arbitrarily expanded on one controller, saving costs to the greatest extent.

        Real-time monitoring, dynamic refresh display of monitoring results, and alarm function to ensure safe production.

        Effective unit setting, one or several filling channels can be opened or closed arbitrarily during use.

        It can store 60 frequently used filling modes, which saves the time for users to set parameters and improves work efficiency.

        The suction angle is set to avoid liquid dripping during shutdown.

        External control start and stop function.

        Each channel independently receives the lack of bottle stop irrigation signal, and realizes the lack of bottle stop irrigation of a separate channel.

        304 stainless steel shell, anti-corrosion, no rust.

        Filling liquid volume range 0.1-9999.99mL Power consumption <100W(GZ600Q2Single group)
        Filling time range 0.1-9999.99s <150W(GZ600Q3Single group)
        Interval time range 0.1-9999.99s temperature 0-40
        Liquid volume resolution 0.01mL Relative humidity <80%
        Time resolution 0.01s Size (mm) Drive: 395*250*186 (GZ600Q2 single group)
        Filling frequency range 1-9999次,0 is unlimited 550*250*186(GZ600Q2Single group)
        range of rotation 0.01-600rpm Controller: 160*120*40
        Suction angle 0-360° weight 11.0kg(GZ600Q2Single group)
        External control method Switch signal 16.5kg(GZ600Q3Single group)
        Protection level IP31 Controller: 1.0kg

        Adapted pump head Reference filling volume (ml) Applicable hose Reference filling time (s) Filling accuracy error Filling needle inner diameter Reference output
        (mm)
        YZ1515 0.3-0.5 13# 1-1.2 ≤±2% ≤0.5 27-30
        1.0-2.3 14# ≤1.0
        2.6-5.1 19# ≤1.5
        4.6-9.1 16# ≤2.0
        10 - 19 25# ≤3.0
        15-30 17# ≤3.0
        YZ2515 8.0-17 15# ≤3.0
        12-24 24# ≤3.0

        相關產品

        *If you encounter any operation or quality problems of Qili constant flow pump, please contact us in time.

        *Baoding Qili constant flow pump Co., Ltd. guarantees 7 * 24 hours online.

        *Qili constant flow pump brand products have a one-year warranty and lifelong maintenance.

        *The product picture, model, data, function, performance, motor model, specification and other parameters of this website are for reference only. Qili constant flow pump can improve the above content. For more information, please refer to the product manual. Unless otherwise specified, the data contained in this website are the internal test results of Qili constant flow pump.
