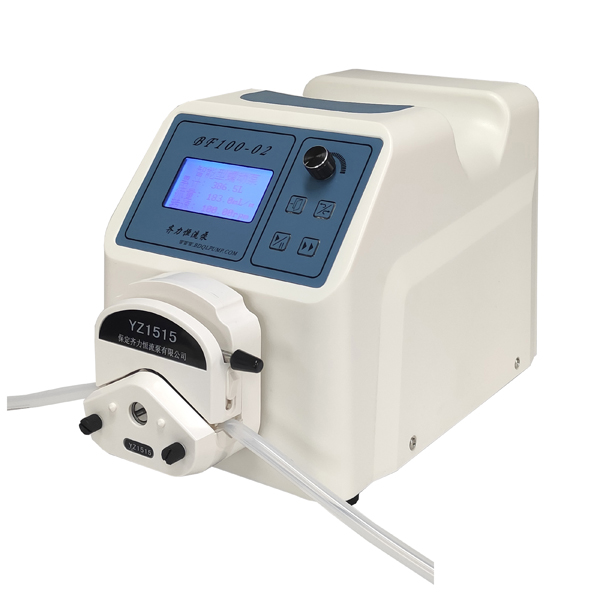

        Distributing peristaltic pump BF100-02

        Suitable for conventional fluid transportation, pharmaceutical industry, fine chemical industry, water treatment, environmental protection engineering, food and beverage production agent Additives, supplementary acid and alkali in the process fermentation system, defoaming, scientific experiment and many other general fields

        Flow range:0.002-380ml/min

        Maximum number of channels:2 channels

        Introduction

        Parameter

        Guide

        video

        typical application
          Suitable for conventional fluid transportation, pharmaceutical industry, fine chemical industry, water treatment, environmental protection engineering, food and beverage production agent
        Additives, supplementary acid and alkali in the process fermentation system, defoaming, scientific experiment and many other general fields

        main feature
        Industrial plastic enclosure

        Large screen LCD display

        Digital knob + mask button adjustment

        Two modes of distribution and flow

        Wide voltage power input

        One-key quick filling and sucking back

        Power-down memory
        BF100-02 technical indicators
        Speed adjustment range 0.1-100rpm External control input interface 0-5V,0-10V,4-20mA,0-10kHz
        Speed display resolution 0.1rpm(<100rpm), 1rpm(≥100rpm) Communication Interface RS485 (Modbus RTU protocol)
        Display method 128×64 graphic dot matrix LCD display Applicable power supply Wide voltage AC100-240V, 50Hz/60Hz
        Dispensed liquid volume 0.1mL-99.9L Power consumption <40W
        Number of allocations 0-999次(0 means infinite loop) working environment Temperature 0-40℃, humidity <80%, no condensation
        time interval 1-999秒 Dimensions 316.5×210×228(mm)(Without pump head)
        Suction angle 0-360° (Length×Width×Height) 381.8×210×228(mm)(With YZ1515 pump head)
        Common traffic storage 6 sets of values Drive weight 3.8kg
        Storage of commonly used liquid volume 6 sets of values Protection level IP31

        BF100-02 flow parameters
        Applicable pump head Applicable hose Flow range (mL/min)
        BF100-02
        DG(6 rollers) Inner diameter≤3.17mm
        Wall thickness 0.8-1mm
        0.0025-48
        DG(10 rollers) 0.002-32
        YZ1515 13# 0.007-6.3
        14# 0.025-25
        19# 0.042-41.7
        16# 0.077-76.7
        25# 0.16-160
        17# 0.27-266.7
        18# 0.38-380
        YZ2515 15# 0.16-160
        24# 0.27-266.7

        相關(guān)產(chǎn)品

        *If you encounter any operation or quality problems of Qili constant flow pump, please contact us in time.

        *Baoding Qili constant flow pump Co., Ltd. guarantees 7 * 24 hours online.

        *Qili constant flow pump brand products have a one-year warranty and lifelong maintenance.

        *The product picture, model, data, function, performance, motor model, specification and other parameters of this website are for reference only. Qili constant flow pump can improve the above content. For more information, please refer to the product manual. Unless otherwise specified, the data contained in this website are the internal test results of Qili constant flow pump.
