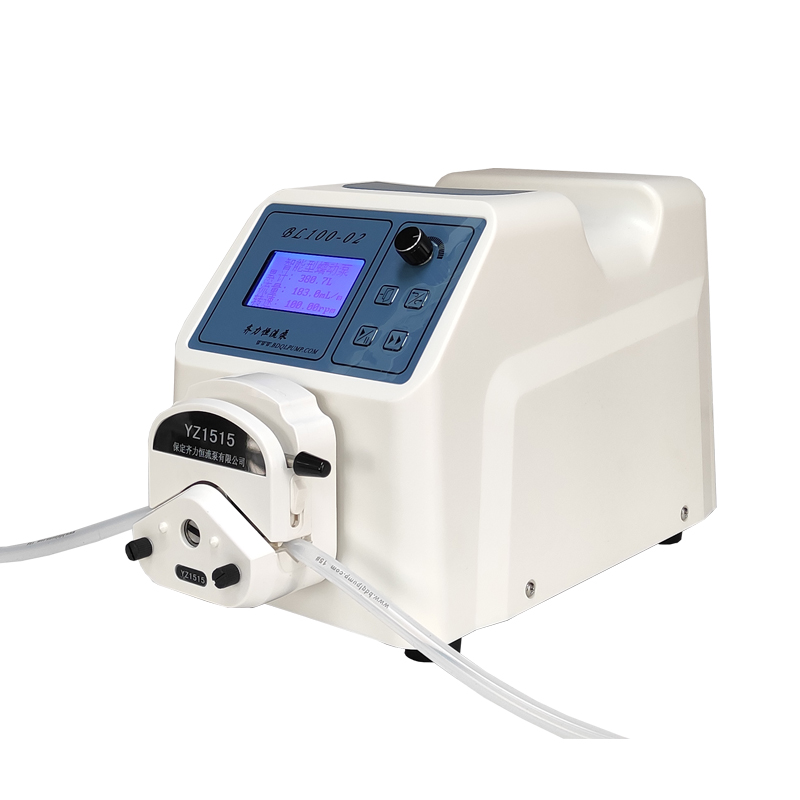

        flow peristaltic pump BL100-02

        Mainly used in laboratories, the most commonly used basic type, suitable for conventional fluid transmission, pharmaceutical industry, fine chemicals, water treatment, Environmental protection engineering, food and beverage addition, and acid and alkali supplementation and defoaming in industrial fermentation systems. And many other general fields.

        Flow range: 0.002-380ml/min

        Maximum number of channels:2 channels

        Introduction

        Parameter

        Guide

        video

        typical application


        Mainly used in laboratories, the most commonly used basic type, suitable for conventional fluid transmission, pharmaceutical industry, fine chemicals, water treatment,
        Environmental protection engineering, food and beverage addition, and acid and alkali supplementation and defoaming in industrial fermentation systems. And many other general fields.


        main feature

        The stepping motor is subdivided and driven, with high precision and stable operation.
        The membrane button adjusts the speed, direction, start/stop, and the operation is simple and convenient; there is also a full-speedbutton for quick filling or emptying.
        With power-down memory function, power-on again after power-off, work according to the state before power-off.
        It can communicate with PC through RS485.
        It can be used with sub-assembly controller, foot switch, external control module and other accessories to realize small batch filling and distribution.

        BL100-02 technical indicators
        Speed adjustment range 0.1-100rpm Power consumption <40W
        Speed display resolution 0.1rpm(100rpm), 1rpm(100rpm) working environment Temperature 0-40℃, humidity <80%, no condensation
        Display method 128x64 graphic dot matrix LCD display Overall dimensions (length×width×height) 205×158×242mm
        External control input interface 0-5V,0-10V,4-20mA,0-10kHz Drive weight 3.0kg
        Communication Interface RS485 Protection level IP31
        Applicable power supply Wide voltage AC100-240V, 50Hz/60Hz Driver applicable pump head YZ1515, YZ2515, DG series

        Applicable pump head

        Applicable hose

        Flow range (mL/min)

        BL100-02


        DG(6Wheel)

        Inner diameter≤3.17mm,

        Wall thickness 0.8-1mm

        0.0025-48


        DG(10Wheel)

        0.002-32


        YZ1515

        13#

        0.007-6.3

        14#

        0.025-25

        19#

        0.042-41.7

        16#

        0.077-76.7

        25#

        0.16-160

        17#

        0.27-266.7

        18#

        0.38-380


        YZ2515

        15#

        0.16-160

        0.16-480

        0.16-960

        24#

        0.27-266.7

        0.27-800

        0.27-1600

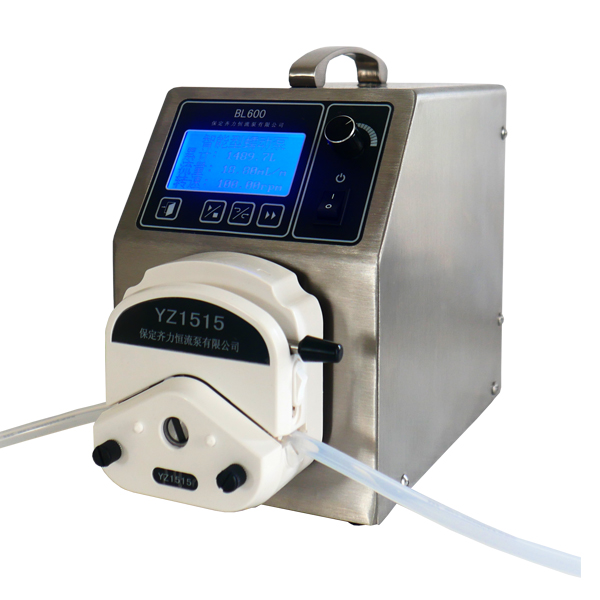

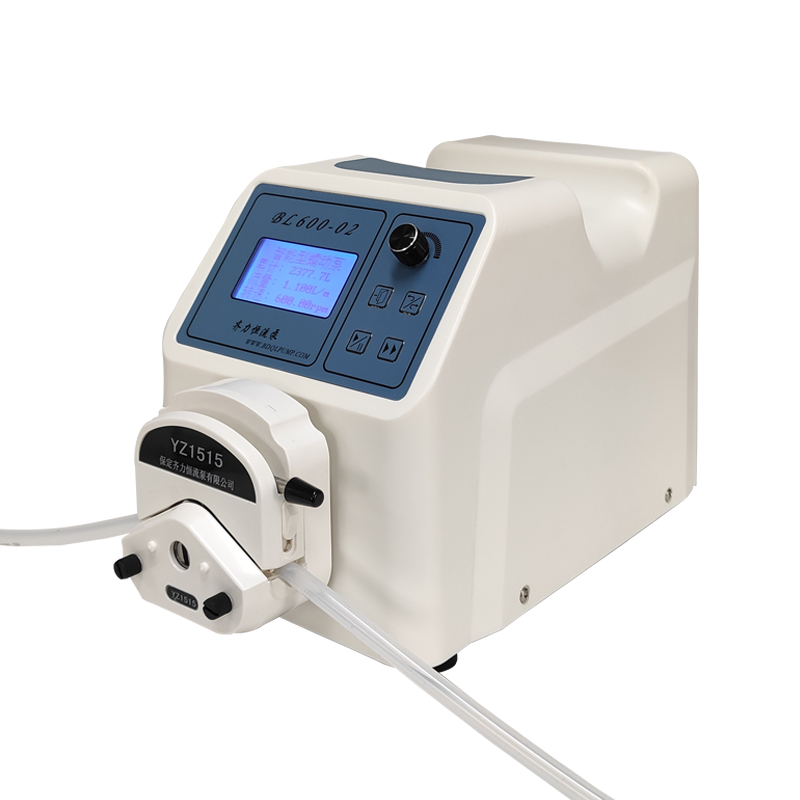

        相關產品

        *If you encounter any operation or quality problems of Qili constant flow pump, please contact us in time.

        *Baoding Qili constant flow pump Co., Ltd. guarantees 7 * 24 hours online.

        *Qili constant flow pump brand products have a one-year warranty and lifelong maintenance.

        *The product picture, model, data, function, performance, motor model, specification and other parameters of this website are for reference only. Qili constant flow pump can improve the above content. For more information, please refer to the product manual. Unless otherwise specified, the data contained in this website are the internal test results of Qili constant flow pump.
